Jiangsu Customer Ordered Submersible Slurry Pumps

Submersible slurry pumps are also called submersible sediment pumps. Submersible slurry pumps put the electric motor and mechanical pump on the same axis, when working, electric motor and mechanical pump submerged into water together, electric motor was cooled by water, and this slurry pump structure eliminates the need to infuse the water, so the operation is relatively simple. The bottom of the sediment pump body is equipped with a stirring impeller, which can stir the deposited sludge to form a turbulent flow and achieve high concentration transportation. OCEAN Pump brand ZJQ series submersible slurry pumps are precisely cast with high quality and high wear resistant alloy material. They are widely used in the tailing pond cleaning, slime extraction in sedimentation tank, river channel dredging, etc.

Jiangsu customer signed a dredging project in a certain river section. The silt layer on the river bed is hard. The workers were carrying out the dredging task by water jetting on sediment, but the efficiency was relatively low, and it was almost impossible to extract the bottom sediment layer. The customer contacted with OCEAN Pump. According to the existing sand dredger dimension and actual working conditions, OCEAN Pump engineers recommended to use the submersible slurry pumps. Adding a set side stirring device on both sides of the submersible slurry pumps to stir the hard silt layer to increase the sediment concentration in the water, thereby improving the extraction efficiency.

Submersible Slurry Pumps ZJQ 300-20-37 Parameters

Flow	300 m³/h
Head	20 m
Power	37 kw
Mixing device	4 kw * 2

After studying the submersible slurry pump seriously and watching the construction video provided by OCEAN Pump, the customer confirmed that OCEAN Pump submersible slurry pump has the features of high efficiency, easy operation, high wear resistance, low maintain cost, and our construction plan only requires a little refit on the existing sand dredger. Finally he chose our construction plan.

About OCEAN Pump

OCEAN Pump is the leading sand pump machine designer, manufacturer and exporter dedicated in supplying sand pumping equipment and dredging equipment to worldwide customers. We have more than 30 talented sand pumping experts and 15,000 square meters factory. More than 4 series 20 kinds of sand pumps, slurry pumps, gravel pumps, sand dredgers and related parts had been manufactured to satisfy your pumping requirements. Our main products include simple sand pump, slurry pump, gravel pump, submersible slurry pump, dredge pump, mining pumps, sand dredging pumps, small dredging equipment, dredger, dredger ship, submersible dredge, suction dredger, cutter dredger, mechanical cutter suction dredger, hydraulic cutter suction dredger, dredging equipment, sand pipe, floater, rubber hose. Product innovation and customer satisfaction are our continuous commitment to all our partners. We had been provided professional pump solutions and services to over 60 countries.  Hope to be your partner.

Pond Dredge Pump was Delivered to Guangxi for Sediment Conveying

Pond dredge pump is a kind of sediment pump which can be used on sand dredger or land for sediment extracting and transporting. OCEAN Pump brand high lift pond dredge pump is precisely cast with high quality and high wear resistant alloy material. It is suitable for marine mud extraction, sand pumping, reclamation and dock construction. It can also be used for power, metallurgical tailing transportation and river dredging.

The customer from Guangxi undertook the river dredging treatment project. The required sand transportation distance is 2 kilometers. The existing sand pumping machine can not meet the transportation requirements. When communicating with OCEAN Pump sales engineer, the customer proposed to use a silt pump for direct extracting and transporting. Taking into account that there is much hard silt at the bottom of the river, our engineers recommended to use cutter suction method for silt suction. OCEAN Pump brand high lift pond dredge pump 400 GN-50 is suitable for the working conditions.

Pond Dredge Pump 400 GN-50 Parameters

Flow	2600 m³/h
Lift	50 m
Power	600 kw
Speed	600 rpm

In the communication, we knew the dimension and working mode of the customer’s existing sand dredger, recommended customer to install a hydraulic cutter suction device and replace sand pump unit to realize long-distance transportation. The sand output is about 500 m³/h. OCEAN Pump engineers took the customer to one working site where our pond dredge pump 400 GN-50 was working, the customer found that the sand pump casing, impeller and guard plate are made of high wear-resistant alloy material so just require to replace few parts after extracting 1,000,000 m³ fine sand. The wear resistance is very good. The use failure rate is very low, the downtime maintenance time is short, the cost of the later maintenance and parts replacement is also low, and the cost performance is very high. The customer signed purchase contract of a pond dredge pump 400 GN-50 matched with diesel engine and gearbox.

About Ocean Pump

As the New Hi-tech Enterprise Certificated  by the Government, Tai’an Ocean Pump Co., Ltd. (OCEAN Pump) is the leading sand pump and sand dredger solutions manufacturer, supplier and exporter in China. We have more than 30 talented sand pump experts and 15,000 square meters factory. More than 4 series 20 kinds of sand pumps, slurry pumps, sand dredgers and related parts had been manufactured to satisfy your pumping requirements. Product innovation and customer satisfaction are our continuous commitment to all our partners. We had always worked harder to become the leader in supplying the  sand, slurry, gravel pumping and dredging solutions and related parts.
OCEAN Pump engage in the development, production and sales of pond dredge pump, sand pumping, dredging pumps, mud pumps, slurry pumps, etc. Please feel free to contact us for design and equipment problems in pumping.

How to Choose Power Source for Heavy Duty Sludge Pump

Heavy duty sludge pump is one kind of slurry pump or sediment pump which can be used to extract river sediment, silt or tailing slag, etc. According to the structure,  sludge pump can be divided into three types  such as horizontal, vertical and submersible sludge pump. Some of our customers often have a question on how to choose suitable power source for sediment pump. Normally we choose the power source according to the actual working conditions. Electric motor, diesel engine and hydraulic power are three commonly used power resources to drive heavy duty sludge pump.

Electric Motor Driven Heavy Duty Sludge Pump

We recommend the electric motor as a power source for the heavy duty sludge pump when there is three-phase industrial power at the work site. . Especially in the case of transporting sludge or mud with long distances, it has the following advantages:

1. With electric motor, the sludge pump has low noise and stable operation. Low noise has less impact on the surrounding environment and it is conducive to workers’ construction.
2. The supporting variable frequency control cabinet controls the operation of the electric motor, sot he start-up is more stable. During the operation, the power can be reduced by adjusting the frequency to reduce the useless power consumption, it could meet the requirements of transportation distance, to save power consumption and reduce the construction electricity cost.
3. The electric motor is also easy to maintain.
4. The electric motor connection mode can be directly connected by the coupling and also connected by the pulley. The installation is flexible and the occupied space is also small.








Diesel Engine Driven Sludge Pump

If the work site have no electric power supply or needs to be equipped with more than 500 KW electric power, we recommend diesel engine as power source. Diesel engines have the following advantages.

1. The diesel engine has the advantage of large torque, It is especially suitable for long-distance transportation and high concentration conditions.
2. When selecting the diesel engine, the engine rotation speed will be calculated according to the requirements of the heavy duty sludge pump. When calculating the heavy duty sludge pump speed ratio, we usually leave a certain amount of allowance. If the heavy duty sludge pump needs to run at the speed which is higher than the designed speed, the diesel engine power also has a certain margin to ensure safe using.








Hydraulic Power Driven Sludge Pump
There are many types of heavy duty sludge pumps,  the hydraulic station is often selected as the power source in some working conditions nowadays. The hydraulic power uses oil liquid as the working medium and uses the oil liquid pressure energy to transmit power. In this way, the heavy duty sludge pump is easy to control, it has a low failure rate, also have good overload protection.
In fact, there is no clear distinction for which kind of power source is better. As long as it is suitable for working conditions, try to use the most cost-effective and easy-to-operate power. This requires the more professional heavy duty sludge pump manufacturer. When communicating with customers, it is necessary to understand the requirements of the working conditions in detail, to provide the best solution for the customer to meet the requirements.

About OCEAN Pump

Tai'an OCEAN Pump Co., Ltd. (referred to as OCEAN Pump) is a manufacturer and supplier of sand pump, submersible sand pump, heavy duty sand pump, slurry pump, mud pump, sediment pump, sewage pump, dredging pump and sand dredger. OCEAN Pump integrates independent research and development, equipment manufacturing, pre-sales and after-sales service. The business of OCEAN Pump covers sand extraction and dredging projects. The products cover more than 500 specifications in 20 series, and the products are exported to 36 countries and regions. During 20 years of development and innovation, OCEAN Pump has won the praise and trust of customers by high sand pump machine quality, professional technology and excellent service.

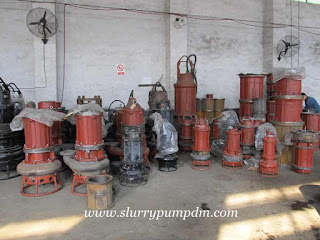

Submersible Slurry Pump with Agitator was Delivered to Thailand for Dredging Sand

Submersible slurry pump with agitator, is an ideal slurry pumping machine which required to be suspended by wire rope and diving into water, it is usually equipped on a submersible slurry pump dredger. The submersible slurry pump with agitator puts electric motor and mechanical pump on the same axis. The bottom of the submersible slurry pump body is equipped with a stirring impeller, which can stir the deposited sludge to form a turbulent flow and achieve high concentration transportation. Because the submersible slurry pump with agitator dive into water directly and the step of pouring water is eliminated, the operation is relatively simple.
Tai'an OCEAN Pump ZJQ series submersible slurry pump with agitator mainly extracts liquids containing solid particles such as sand, cinder and tailing. It is widely used for the removal and transportation of mud liquids in metallurgical, mining and thermal power plants, and the tailing storage, coal slime extracting in sedimentation tanks, dredging rivers in the middle and lower reaches of the Yellow River and other fields.

Thai customers require a slurry pump in the river. The river with water depth 12m and sand layer 3 meters at the bottom. There are no items such as stones or garbage. The existing simple hull requires simple modification, and the sand pumping equipment should be easy to operate. The conveying distance is 100-200 meters, and the sand amount per hour is 30 to 50 cubic meters. The wear resistance is good and the replacement parts with long life span.
In combination with the customers’ actual requirements, referred to previous similar construction experience, OCEAN Pump engineers recommended Submersible slurry pump with agitator ZJQ 200-15-22.

Technical Parameters of Submersible slurry pump with Agitator ZJQ 200-15-22

Flow capacity	200 m³/h
Pump head	15 m
Power	22 kw
Rotation speed	980 rpm
Biggest particle can discontinuous pass through	32 mm

The submersible Slurry pump with agitator adopts wear-resistant high-chromium alloy material, and the Rockwell hardness is about 55. It has good wear resistance and long service life. After studying the selection plan of OCEAN Pump, the customers signed the purchase contract with us. After the ZJQ200-15-22 submersible slurry pump with agitator was delivered to the customers’ working site, OCEAN Pump engineers guided the customers to modify the hull by telephone and video. In test running, the sand capacity was about 35 cubic meters per hour. But there was a problem, when diving into water for sand extracting, the submersible dredge pump hoisted the wire rope to shake forth and back. The customers sent us video about the problem, after discussion, our engineers confirmed that during the modification process, the reserved space for the sand discharge pipe was small, so it was easy to cause the pipe to be twisted, resulting in the tilting rotation of the Submersible slurry pump with agitator. After the customer changed the pipe area, the problem was ruled out. The sand pumping operation was carried out for 2 days, the problem did not occur, and the sand capacity increased to about 43 cubic meters per hour. After 3 months of operation, the customers routinely maintained the submersible slurry pump with agitator, and found that the impeller and the pump casing did not show excessive wear marks, and were very satisfied with the wear resistance of our submersible sediment pump.

About OCEAN Pump

Tai'an Ocean Pump (OCEAN Pump) Co., Ltd. is the leading sand pump and sand dredger solutions manufacturer, supplier and exporter in China. We have more than 30 talented sand pump experts and 15,000 square meters factory. More than 4 series 20 kinds of sand pumps, slurry pumps, sand dredgers and related parts had been manufactured to satisfy your pumping requirements.
Product innovation and customer satisfaction are our continuous commitment to all our partners. OCEAN Pump is the Certification of New Hi-tech Enterprises by the Government. We provide our customers with a complete set of  sand, slurry, gravel pumping solutions and related parts. Our main products include centrifugal portable sand pump, marine sand pump, slurry pump, gravel pump, submersible slurry pump, vertical sand pump, simple small sand pump dredger, submersible dredger, mini dredge for sale,  small dredging equipment, small pond dredging equipment, sand suction dredger,  suction dredging equipment, cutter suction dredger, sewage submersible pump, lake dredging equipment, mini dredges for sale, sand dredging machine, river dredging equipment and other parts like discharging sand pipe, floater, rubber hose. They are widely used in mining, metallurgy, coal washing, power plants, sewage water treatment and dredging in such industries as mine, chemical and petroleum. We are looking for pump dealers all over the world.

Electric Sand Dredge Pump Used for Construction Mud Conveying

Electric sand dredge pump is also called heavy duty sand pump. Electric sand dredge pump is the kind of sediment pump for extracting mud, fine sand, and other media and transporting them over long distances. The electric sand dredge pump designed by OCEAN Pump is precisely cast by high quality and high wear resistant material. It is suitable for marine mud absorption, sand pumping, reclamation and dock construction. Electric sand dredge pump can also be used for power, metallurgical transportation and river and lake dredging . At present, it is widely used in various conditions such as dredging and embankment in the Yellow River Basin, dredging in the Yangtze River Basin, coastal reclamation, and inland river sand mining.

An engineering company in Zhejiang has undertaken a mud transportation project in the underground engineering. About 5 million cubic meters mud obtained from underground construction requires to be delivered to a place 12 kilometers away from the construction site.
The site is on a relatively congested section of the local traffic, so the government designate the construction period to be 22:30 – 7:00 the next day. It also requires less noise during construction, minimizing the dust pollution, and reducing the impact on the lives of surrounding residents.
The customer currently uses trucks to transport mud to a designated area for stacking. However, this method is less efficient. Trucks need continuous round-trip transportation and can only work at specified times in the evening, which results in lower transporting efficiency. And environmental pollution problems such as dust and spills cannot be avoided. The customer contacted our engineers through our website to inquire whether there were other transportation modes that can improve efficiency while reducing costs and pollution.

OCEAN Pump put great emphasis on this new field and new construction requirements. Through deep communication with customers, OCEAN Pump engineers judged that it is similar to the previous sand pumping and transportation project. Therefore, our engineers recommended sand booster pump mode for sand pumping. The specific construction contents are as follows:

1. Use multiple vertical sediment pumps equip with high-pressure water pumps.Water pumps extract clean water from the river. The water pump can provide high-pressure water to impact the soil layer, thereby forming high concentration mud and water mixture, which is pumped and transported by a vertical sand pump.
2. The mud and water mixture extracted by vertical sand pumps was gathered to one electric sand dredge pump by mud transporting hose then is conveyed by electric sand dredge pump 3km away. There are other two electric sand dredge pumps as booster sand pump, the two sand pumps are in same model. The mixture will be conveyed and discharged to the river 12 km away by the booster pumps.

The Advantages of Electric Sand Dredge Pump

1. The electric sand dredge pump can be used for 24 hours without interruption, which effectively improves the working efficiency. The sand extracted by the sand pump machine will be directly transported to the designated discharge pool through the pipeline, and does not need to be transported by the vehicle, so the work efficiency will be much improved.
2. Compared to truck transporting, sand pump conveying has little impact on traffic. The environmental pollution is also minimal because the sediment is conveyed by pipeline, almost no leaks.
3. The electric motor has low noise during running, it has little effect on the normal life of the surrounding residents.
4. It doesn’t require many people for operation, and there are low requirements for operators. These can reduce the labor cost.

The customer is very appreciative of the electric sand dredge pump, and through inspection, it is judged that this method is conducive to the transportation of building soil. And the customer originally had 7 vertical sediment pumps that can be used, so it is only necessary to purchase a sand pumps as booster pumps. After confirming the plan, the customer immediately signed a purchase contract for 3 sets electric sand pumps and supporting equipment.

The parameters of the Electric Sand Dredge Pump 450 PNS-35

Flow	2600 m³/h
Head	35 m
Power	380 kw
Speed	730 rpm

After confirming the order, OCEAN Pump began to manufacture the sand dredge pump according to the contract. The electric sand dredge pump and supporting equipment were delivered to the customer’s designated site on May 18, 2019. After the complete sets of equipment includes the required pipeline installation finished production, OCEAN Pump engineers started to debug the equipment on site. During the trial operation of the heavy duty sand pump units, the water and mud mixture capacity was about 400 cubic meters per hour which can meet the customer’s expectations. And the overall operation cost is low, and the cost is much lower than the previous truck transportation. The customer is very satisfied with this. In view of the success of this cooperation, the customer is more confident about the next phase of the project (transport distance up to 40 kilometers), so signed a new procurement contract with our company.

About OCEAN Pump

Tai'an Ocean Pump Co., Ltd. is the leading sand pump and sand dredger solutions manufacturer, supplier and exporter in China. We have more than 30 talented sand pump experts and 15,000 square meters factory. More than 4 series 20 kinds of sand pumps, slurry pumps, sand dredgers and related parts had been manufactured to satisfy your pumping requirements. OCEAN Pump is the Certification of New Hi-tech Enterprises by the Government. We provide our customers with a complete set of  sand, slurry, gravel pumping solutions and related parts. Our main products include centrifugal portable sand pump, marine sand pump, slurry pump, dredge pump, gravel pump, mud pump, submersible slurry pump, vertical sand pump, simple small sand pump dredger, submersible dredger, mini dredge for sale,  small dredging equipment, small pond dredging equipment, sand suction dredger,  suction dredging equipment, cutter suction dredger , sewage submersible pump, lake dredging equipment, mini dredges for sale, sand dredging machine, river dredging equipment and other parts like discharging sand pipe, floater, rubber hose. They are widely used in mining, metallurgy, coal washing, power plants, sewage water treatment and dredging in such industries as mine, chemical and petroleum. We are looking for pump dealers all over the world.

10 inch Small Dredge Delivered to Congo for Pumping Sand

10 inch small dredge is the kind of hot sale sand dredging equipment equipped with 10 inch submersible sand pump that pumping sand or other various minerals from the bottom of the water. OCEAN Pump brand 10 inch small dredge is specially designed and manufactured for transportable and multipurpose sand mining application with self-propelled system by electric or diesel engine driven motors.  The cost effective 10 inch small dredge has the characteristics of high efficiency, easy to operate, novel design and large output, etc. 10 inch small dredge is widely used to dredge sand from river or lake in Africa.

Congo customer placed the order for 10 inch small dredger on February 10th, 2019. OCEAN Pump redesigned and optimized the sand dredger according to Congo customer’s special requirement and the working conditions. After 3 months, small dredger was successful produced, the customer came to inspect the finished product,  our workers showed him the functions and quality of the sand dredging equipment and trained him how to operate, disassemble, install and transport the sand dredger. The Congo customer was satisfied with the 10 inch portable dredger. After 7 days, the portable dredger was packaged and ready for shipment. The whole set small dredger passed the test and shipped to Congo in May 7th, 2019.

Specification of 10 inch Small Dredge

Dredger dimension(L*W*H)		5.8 m * 4.2 m * 1 m
Sand pump	Type	10 inch sand pump
	Flow	400 m³/h
	Head	18 m
	Diesel engine power	155 kw
	Speed	1000 rpm
Water pump	Type	6 inch water pump
	Flow	250 m³/h
	Head	18 m
	Diesel engine power	22 kw
	Speed	1200 rpm

Tai’an OCEAN Pump Co. Ltd. (referred to as OCEAN Pump)specializes in the development, production and sales of small dredge, submersible slurry pump dredger, jet suction dredger, sand pump, submersible slurry pump, heavy duty sand pump, etc. As the leading sand dredger designer, manufacturer and exporter, OCEAN Pump has been dedicated in supplying sand dredging machines to worldwide customers for over 20 years. OCEAN Pump has won the praise and trust of customers with rich industry experience, professional technology and excellent service.

How to Maintain and Repair of Multi-purpose DS Sand Suction Pump

DS sand suction pump is the kind of heavy duty sand pumping machine designed by OCEAN Pump to provide continuous transport of highly abrasive sand or slurries containing large particles with high flow, excellent efficiency, low maintenance and ownership costs.
Mr. Huang has a sand field, he want to use small stone and gravel to make sand, because the government has strict control over the river sand pumping. The sand produced during the stone and gravel crushing process contains more mud, and a large amount of muddy water is generated during the cleaning process. It is necessary to solidify the mud into a mud block by a filter press to facilitate handling. Because the pressure required for the feed is large, so Mr. Huang purchased two multi-purpose DS sand suction pump for the filter press from OCEAN Pump.

Troubleshooting of Multi-purpose DS Sand Suction Pump

The multi-purpose DS sand suction pump was installed on site and the effect was good. The mud began to form in about 10 minutes. After using for a period of time, the on-site master reflected the abnormal noise of the bearing, the pressure at the inlet was reduced, and the discharge time was extended. After receiving feedback from the on-site staff, OCEAN Pump arranged engineers to go to the site to repair the DS sand suction pump. Upon arrival at the scene, our staff conducted an overhaul of the following problems.

1. The multi-purpose DS sand suction pump was not on the horizontal line with the pulley of the motor, and the distance of the motor end pulley protruded outward by half of the sheave. At the same time, the DS sand suction pump bearing chamber had abnormal noise. The engineers guessed that the bearing might be damaged due to the force deviation caused by long-term disagreement.
2. The pressure at the feed port was reduced, indicating that the lift of the DS sand suction pump was reduced. The motor used in the field is the second-hand motor purchased by the customer. Our engineers used the speed measuring instrument to detect the lower motor speed. The rated speed of the 4-pole motor is 1470 rpm, but the display was only about 1300 rpm. The motor speed was low, so that the speed transmitted to the DS sand suction pump was not up to the rated speed, so the engineers recommended to increase the motor pulley by one specification. The original motor pulley was a C-type 4 slot with an outer diameter of 240 mm. The engineers recommended to use a pulley with an outer diameter of 260 mm.
3. The engineers checked the installation pipeline of the DS sand suction pump and found that the inlet pipe was only fitted on the joint, no fastening with clips. This method could easily lead to air intake of sand pump. At the same time, the packing had not been replaced for a long time, and there was a phenomenon of mud leakage. Various reasons caused the air intake of the sand suction pump, and the pressure did not meet the requirements. After finding the causes, the engineers began to transform the unreasonable places.








How to maintain and repair the Multi-purpose DS Sand Suction Pump

1. After OCEAN Pump engineers disassembled the bearing chamber of the multi-purpose DS sand suction pump, it was found that the balls of one bearing were damaged. Therefore, according to the model requirements, the on-site worker went out to buy.
2. At the same time, the engineers replaced the pulley with the outer diameter of 260 mm.
3. Reinforce the pipe at the entrance, and seal the interface with a film of grease to prevent air intake.
4. Because the engineers brought a box of packing in advance, they directly replaced the packing that has been worn out.

After all faults have been eliminated, our engineers installed the DS sand suction pump body and started up. There was no mud leakage at the place of the packing, and no abnormal noise in the bearing chamber. The slurry in the tank was quickly pumped into the filter press, and the effect was very obvious. During the maintenance process, our engineers patiently explained to the field staff the steps of replacing the parts and the methods for solving the problems, to ensure that the construction workers in the future work, such as replacing the packing and reinforcing the imported pipes, could handle the problems by themselves.

About OCEAN Pump

Tai’an OCEAN Pump (OCEAN Pump) Co., Ltd. is the leading sand pump machine and sand dredger manufacturer, supplier and exporter in China. We have more than 30 talented sand pump experts and 15,000 square meters factory. More than 4 series 20 kinds of sand pumps, slurry pumps, sand dredgers and related parts had been manufactured to satisfy your pumping requirements. OCEAN Pump is the Certification of New Hi-tech Enterprises by the Government. We provide our customers with a complete set of  sand, slurry, gravel pumping solutions and related parts. Our main products include centrifugal portable sand pump, marine sand pump, slurry pump, dredge pump, gravel pump, mud pump, submersible slurry pump, vertical sand pump, simple small sand pump dredger, submersible dredger, mini dredge for sale,  small dredging equipment,small pond dredging equipment, sand suction dredger,  suction dredging equipment, cutter suction dredger , sewage submersible pump, lake dredging equipment, mini dredges for sale, sand dredging machine, river dredging equipment and other parts like discharging sand pipe, floater, rubber hose. They are widely used in mining, metallurgy, coal washing, power plants, sewage water treatment and dredging in such industries as mine, chemical and petroleum. We are looking for pump dealers all over the world.

Special Submersible Slurry Dredge for Tourist Resort Dredging in Thailand

Submersible slurry dredge is the kind of dredging machine equipped with submersible slurry pump which is mainly used to dredging the river, lake to deepen the river or lake bed, ensure the rain season with enough place for more water and sludge.  OCEAN Pump Brand submersible slurry dredge is the ideal equipment to dredge sand, gravel, solids and all kinds of sludge in diverse applications related to the sand mining, slurry dredging in construction, oil and mining industry as well as marine, energy, and industrial applications.

 Requirement of  Submersible Slurry Dredge for Tourist Resort Dredging in Thailand

1. Rainy season had much water, the tourist resort needed to dredge the river or lake to ensure the water pass.
2. Some place the water quality was not good which needed to dredge the bottom sludge or slurry to make the water clear.
3. Normally the machine was heavy to move with big decibel.

Solution of Submersible Slurry Dredge

With lots of dredging experience, we make the special sand dredging equipment with submersible slurry pump for this kind of working condition.
1. Easy Operation
The submersible slurry dredge is composed of submersible slurry pump, pontoon, sound proof generator, discharge pipe. All of these are easy to operated, when arrived at working site, the customer just need to make assembly and operate it.
2. Low Noise
The generator with sound proof can make the submersible slurry pump dredger with low noise.
3. Small Space Occupy
The submersible slurry dredge is a small pontoon, which can be moved by remote control in the small river or canal.
4. High Efficient with Bottom Agitator
The submersible dredger pump can be equipped with bottom agitator which can mix the bottom slurry up and then pump the slurry out and if you want to finish the project in short time, suggest this sand suction dredger.
5. Environmentally Friendly
6. Low Fuel Consumption
In May, 2019, customer from Thailand inquire this kind of submersible slurry dredge for his holiday resort dredging.
After communicating the working condition, we choose the ZJQ 300-20-37 submersible dredge pump and the suitable pontoon for customer request and customer prefer to use the remote control for the project, we can also reach it!
Afternoon 2 months communication, customer make the deposit for this project and products are also on schedule！

Submersible slurry dredge is designed and manufactured with optimized hydrodynamics technology for sand suction and silt clearing. It has the characteristics of high efficiency, energy saving, simple operation and easy management.

About OCEAN Pump

Tai'an Ocean Pump (OCEAN Pump) Co., Ltd. is the leading sand pump machine and sand dredger solutions manufacturer, supplier and exporter in China.We have more than 30 talented sand pump experts and 15,000 square meters factory. More than 4 series 20 kinds of sand pumps, slurry pumps, sand dredgers and related parts had been manufactured to satisfy your pumping requirements.
Product innovation and customer satisfaction are our continuous commitment to all our partners. OCEAN Pump is the Certification of New Hi-tech Enterprises by the Government. We provide our customers with a complete set of  sand, slurry, gravel pumping solutions and related parts. Our sand pump machine include centrifugal portable sand pump, marine sand pump, slurry pump, gravel pump, submersible slurry pump, vertical sand pump, portable dredger, submersible dredger, mini dredge for sale,  small dredging equipment, small pond dredging equipment, sand suction dredger,  suction dredging equipment, cutter suction dredger, sewage submersible pump, lake dredging equipment, mini dredges for sale, sand dredging machine, river dredging equipment and other parts like discharging sand pipe, floater, rubber hose. They are widely used in mining, metallurgy, coal washing, power plants, sewage water treatment and dredging in such industries as mine, chemical and petroleum. We are looking for pump dealers all over the world.

Electric Motor Sand Pump Delivered to Fujian for Sand Pumping and Long Distance Transfer

Electric motor sand pump is most commonly used in sand pumping system that move sand deposits to long distance. The electric motor sand pump can be simply classified as sand pump, slurry pump and gravel pump which are widely used in mining, metallurgy, coal washing, power plants, sewage water treatment, dredging, and chemical and petroleum industries. OCEAN Pump has been dedicated to manufacturing and supplying high efficient electric motor sand pump for your most challenging pumping applications.
The application of motor combined with the popularization of frequency conversion starting cabinet can give full play to the maximum effect of motor sand pump and effectively realize the high unity of cost performance.

Electric Motor Sand Pump Selection Background
On June 15th, 2019, a customer from Fujian contacted OCEAN Pump for sand pump. The customer was using the 250PNS-35 marine motor sand pump, which had a good effect, but the biggest problem was the transport distance. The previous sand pump type can only transport 400 meters, the customer want to change a electric sand pump that can reach 800 meters discharge distance.
Electric Motor Sand Pump Selection Process
The design team of OCEAN Pump carefully compared the previous motor sand pump machine type and high lift sand dredge pump. Considering the complicated structure of the high lift sand dredge pump, the designer modified the drawings to design a single pump shell high lift electric sand suction pump. This motor sand pump type takes into account the long-distance transport capacity of the high-lift sand pump, and takes into account the advantages of high efficiency, energy saving and lightness of the marine motor sand pump. The customer immediately ordered this equipment.

Electric Motor Sand Pump Performance Parameters

Pump model	350 GN-50
Flow rate	1300 m³/h
Lift	50 m
Supporting motor	315 kw
Speed	730 r/min

On July 15, 2019, the high-lift heavy duty marine sand pump test was successful, and all the indicators met the design requirements. The quality inspection department was allowed to leave the factory and delivered to the site in Fujian.
About Ocean Pump
As the New Hi-tech Enterprise Certificated  by the Government. Tai'an Ocean Pump (OCEAN Pump) Co., Ltd. is the leading sand pump and sand dredger solutions manufacturer, supplier and exporter in China. We have more than 30 talented sand pump experts and 15,000 square meters factory. More than 4 series 20 kinds of sand pumps, slurry pumps, sand dredgers and related parts had been manufactured to satisfy your pumping requirements. Product innovation and customer satisfaction are our continuous commitment to all our partners. We had always worked harder to become the leader in supplying the  sand, slurry, gravel pumping and dredging solutions and related parts.
